DRM Solutions for Desktop and Portable Receivers
CML Micro (www.cmlmicro.com/) in co-operation with Cambridge Consultants (www. cambridgeconsultants.com) (UK) have developed a small, low-power and low-cost DRM portable receiver module for both DRM in AM and FM, as well as the corresponding analogue frequencies.
The DRM1000 is the world’s most versatile Digital Radio Mondiale (DRM) capable consumer broadcast receiver module. It is a complete ‘antenna-to-audio’ solution providing a fast, low cost and low power means of achieving mass market receivers of AM, FM, and DRM broadcasts worldwide. It is aapproximately 48mm x 28mm x 3mm in size.
The new DRM1000 module opens the low-cost end of the DRM receiver offers.
DRM1000 evaluation board shown demonstrates:
- User interface based on push-buttons
- Small low-cost display
- MW, SW and VHF antennas
- Complete radio requiring no external processor
- ‘Antenna to speaker’ solution
- Only active components are display and power supply regulator
DRM1000 supports a serial control and data interface:
- Allows use of an external host
- Can deliver data services for external processing / display
DRM1000 supports:
- DRM Consortium’s Minimum Receiver Specification, v4.2
- Journaline advanced text
- Emergency Warning Functionality
CML Micro’s solution can be acquired by radio manufacturers in various countries globally in order to produce DRM digital radios locally, therefore at reduced costs for the consumers wishing to buy those digital receivers.
Elements Innovation in co-operation with RF2Digital, both DRM Consortium members, have successfully completed the development of a next-generation radio module that supports multiple digital standards. The newly developed module is available in two configurations:
- one supporting DRM/DAB/FM/AM, mainly for Indonesia, South Africa
- one supporting DRM/CDR/FM/AM specifically for China, marking a significant achievement in the evolution of digital radio technology.
The module offers strong competitiveness in the global digital radio market. It supports both analogue and digital audio outputs, delivering crystal-clear sound quality. Due to these characteristics, it can be applied to a variety of consumer electronic products, including home radios, portable audio devices and vehicle infotainment systems. The tuner technology used in this module is entirely based on automotive-grade components, ensuring outstanding reception performance.
For any inquiry, please contact Sunny Leung at Elements Innovation: sunny@einno.tech.
The company has developed the standalone W2401 desktop receiver with WiFi Hotspot capability using their module described at point (3) above and illustrated below:
The features of this model are:
- STARWAVES DRM receivers support the full DRM capabilities in the AM and FM Bands
- High Performance Certification from TWR labs
- Full computing power – All STARWAVES receivers are capable of powerful CPU tasks such as storing streams or services on SD card or distributing them via WiFi (subject to product configuration) to smart phones, tables or PC’s
- e-Learning/Distant Education solution with integrated WiFi Hotspot for both teachers and students, in school or at home – trial is planned to commence in 2024
- AM Bands: Medium and Shortwave analogue and DRM (531-30000 kHz), LW on request
- FM Band: 64-108 MHz, Band III on request
- DRM/DAB+ multistandard variant on request
- FM-DRM Blending
The receiver is made available on Amazon, Alibaba, TradeIndia, Conrad, eBay
Inntot Technologies Pvt Ltd, India (for AM and FM)
Their desktop radio is based on a generic processor and meets all the specifications for the Minimum Receiver Requirements for mediumwave (MW). The receiver supports all frequency
bands (AM and FM), the xHE-AAC audio codec, Journaline, Slideshow feature, Service and
Programme information, as well as the DRM EWF emergency alert feature. The design has
been field tested in number of cities and rural areas in India and has been tested in Japan.
The company’s website is: www.inntot.com Inntot can be contacted at: info@inntot.com

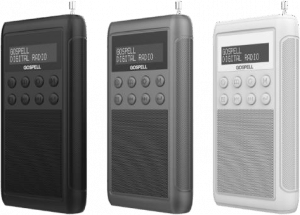

For Gospell desktop and car receivers, please visit the company website.
For specific orders, please write to: chenmi@gospell.com.
For more information on available manufacturer products and general DRM news and information, please go to:
